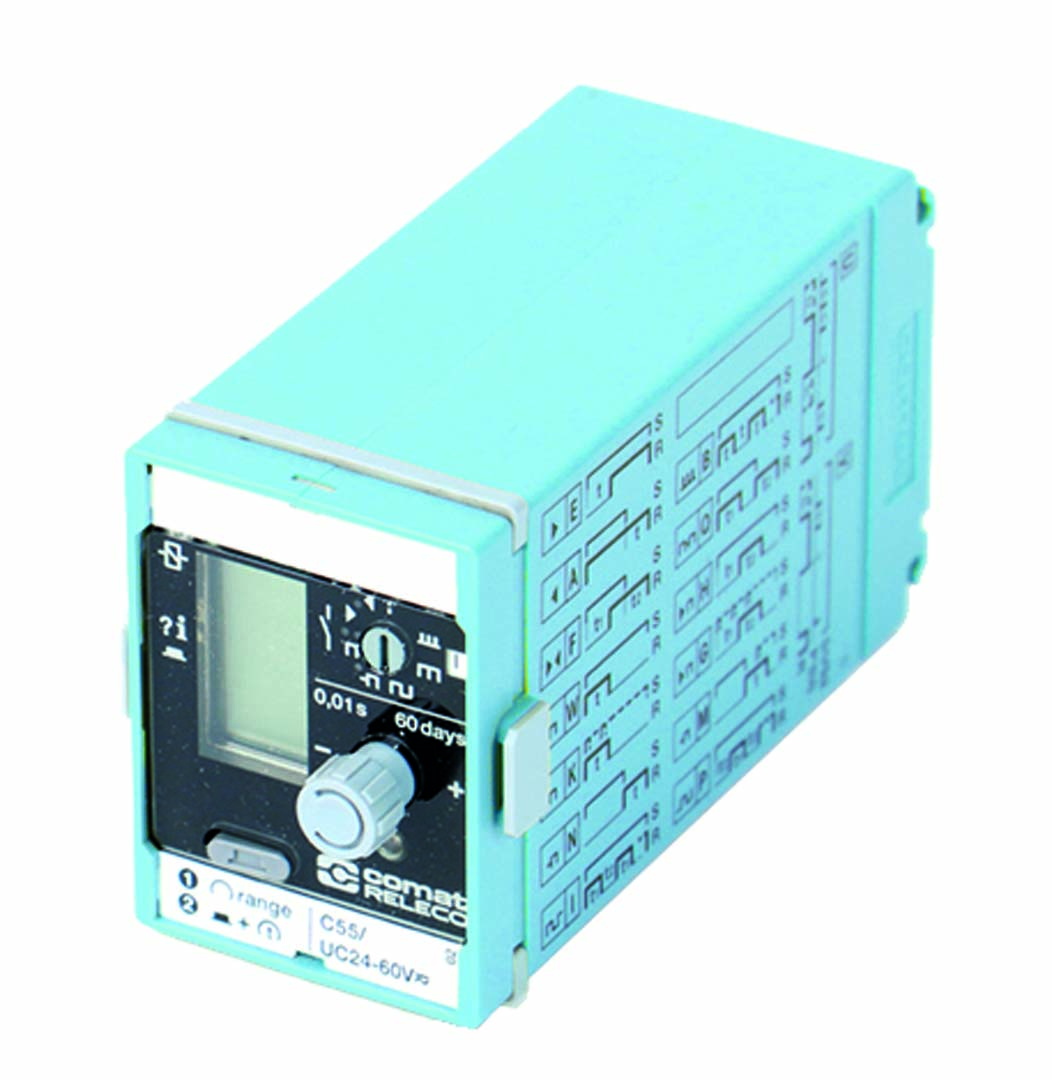

C55/UC24-60V
- 2 pole
- Changeover contacts
- Contact material AgNi
- 5 A @ 250 V AC / 5 A @ 25 V DC
- Time functions: E, W, H, B, I, A, K, N, M, G, F, Q, U, V
- Changeover contacts
- Contact material AgNi
- 5 A @ 250 V AC / 5 A @ 25 V DC
- Time functions: E, W, H, B, I, A, K, N, M, G, F, Q, U, V
ELDAS®:
528738222
| Current type | AC / DC (50 Hz) |
|---|---|
| Nominal voltage | 24 V-60 V |
| Current consumption on input control B1 AC / DC | 6.3 mA / 6.3 mA |
|---|---|
| Current consumption on supply A1-A2 AC / DC | 80 mA/ 80 mA |
| Frequency range | 0; 50 ... 400 Hz |
| Nominal voltage | 24 ... 60 V AC / DC |
| Operating voltage range | 19 … 75 V AC / DC |
| Power consumption AC / DC | 2 VA / 2 W |
| Threshold voltage on input control B1 AC / DC | 11 V / 11 V |
| Housing material | PC |
|---|---|
| Ingress Protection | IP 20 |
| Operation temperature | -25 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 80 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 2 |
| Rated test voltage control / main circuit | 2 kV rms / 1 min |
| Rated test voltage main / main circuit | 2 kV rms / 1 min |
| Rated test voltage open contact | 1 kV rms / 1 min |
| Contact materials | AgNi |
|---|---|
| Inrush current | 10 A, 10 ms |
| Mechanical endurance (cycles) | 5 000 000 |
| Minimum load | 10 mA, 12 V |
| Number of contacts | 2 CO |
| Rated current | 5 A |
| Rated load AC-1 | 1250 VA |
| Rated voltage | 250 V |
| Approvals | UKCA,CE,EAC |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing range | 0.01 s … 60 d |
|---|---|
| Timing scale | digital |
