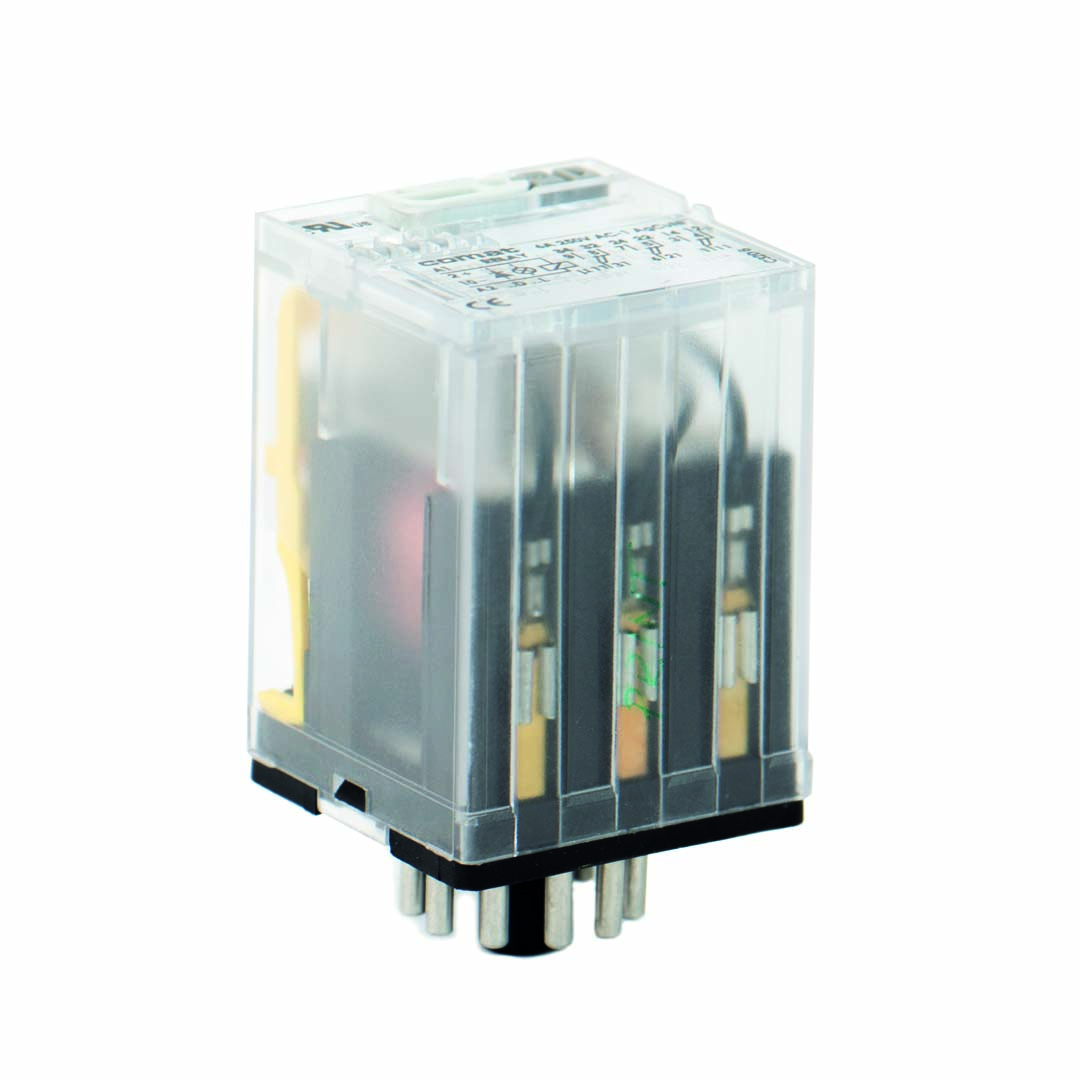

C22DL/DC12V
- 2 pole
- Changeover contacts, twin contacts
- Contact material AgCuNi
- 6 A @ 250 V AC / 30 V DC
- Changeover contacts, twin contacts
- Contact material AgCuNi
- 6 A @ 250 V AC / 30 V DC
ELDAS®:
| Current type | DC |
|---|---|
| mA | 104 mA |
| Nominal voltage | 12 V |
| Ohm | 115 |
| Operating voltage range | 0.8 UN … 1.1 UN |
|---|---|
| Pick-up voltage | ≤ 0.8 UN |
| Power consumption AC / DC | 2.5 VA / 1.2 W |
| Release voltage AC / DC | > 0.15 x UN / > 0.05 x UN |
| Variant | LED & Free wheeling diode |
|---|
| Bounce time NO contact AC / DC | 3 ... 6 ms / approx. ≤ 3.5 ms |
|---|---|
| Housing material | PA / PC |
| Maximum switching frequency at rated load | 360 / h |
| Operation temperature | -40 … 70 °C |
| Pick-up time AC / DC | 3 … 10 ms / ≤ 12 ms |
| Release time AC / DC | 2 … 15 ms / ≤ 3.5 ms |
| Storage temperature (no ice) | -40 … 70 °C |
| Weight | 80 g |
| Insulation resistance at 500 V | ≥ 1 GΩ |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Test voltage contact / coil | 2 kV / 1 min |
| Test voltage contact / contact | 1.5 kV / 1 min |
| Test voltage open contact | 1.5 kV / 1 min |
| Contact materials | AgCuNi |
|---|---|
| Electrical endurance at rated load AC-1 (cycles) | ≥ 1 500 000 |
| Inrush current | 15 A, 20 ms |
| Maximum contact load AC | 6 A / 250 V AC-1 |
| Maximum contact load DC | 6 A / 30 V DC-1 |
| Mechanical endurance (cycles) | ≥ 100 000 000 |
| Rated current | 6 A |
| Rated load AC | 1 500 VA |
| Recommended minimum contact load | 10 mA / 5 V |
| Approvals | UKCA,CE,EAC,CCC,cURus |
|---|---|
| Standards | IEC/EN 61810,IEC/EN 60947 |
