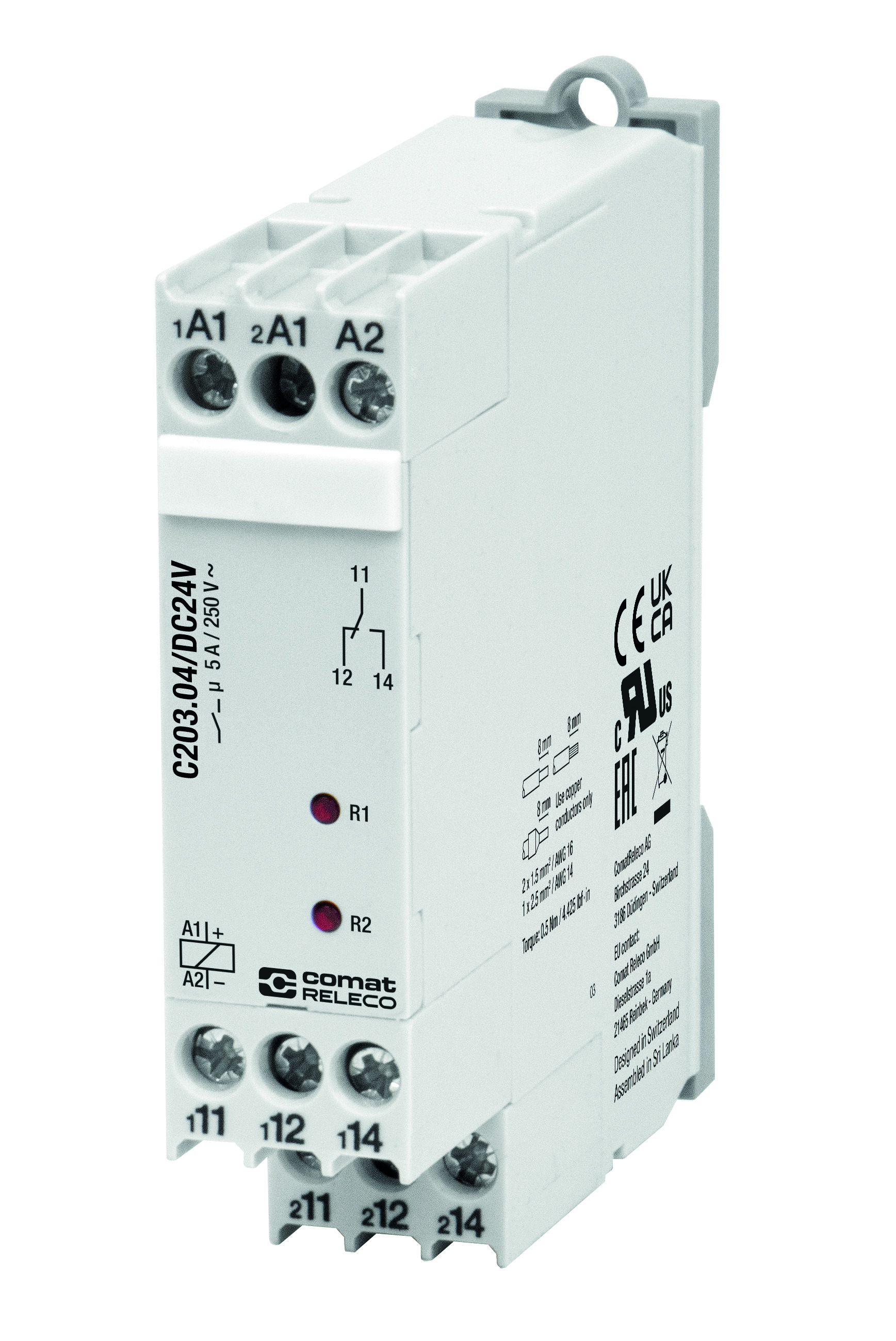

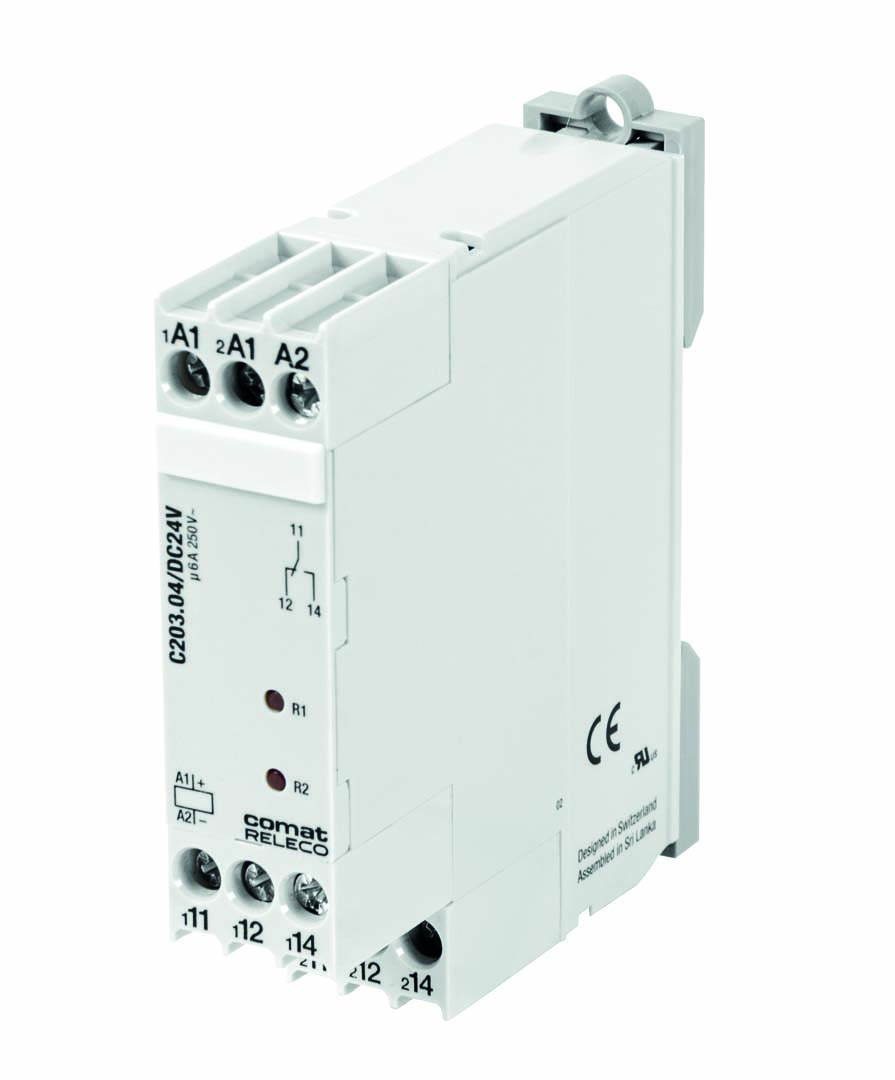

C203.04/DC24V
- 2 pole
- 2 coils
- Changeover contacts
- Contact material AgNi
- Min 1 mA @ 0.1V
- 2 coils
- Changeover contacts
- Contact material AgNi
- Min 1 mA @ 0.1V
ELDAS®:
7.63001E+12
| Current type | DC |
|---|---|
| Nominal voltage | 24 V |
| Operating voltage range | 0.8 UN … 1.2 UN |
|---|---|
| Pick-up time | 6 ms |
| Pick-up voltage | 0.8 UN |
| Power consumption AC | 2 x 0.25 VA |
| Power consumption DC | 2 x 0.25 W |
| Release time | 30 ms |
| Release voltage | ≥ 0.1 UN |
| Conductor cross section | solid wire 1 x 4 mm2, 2 x 1.5 mm2, stranded & crimped wire 1 x 2.5 mm2, 2 x 1.5 mm2 |
|---|---|
| Housing material | PA / PC |
| Ingress Protection | IP 20 |
| Mounting | TH35 (EN 60715) |
| Nominal screw torque | 0.5 Nm |
| Operation temperature | -25 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 65 g |
| Contact / coil | 2 kV / 1 min |
|---|---|
| Contact/contact | 4 kV / 1 min |
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 1 kV / 1 min |
| Contact materials | AgNi |
|---|---|
| Electrical endurance at rated load AC-1 (cycles) | ≥ 100 000 |
| Maximum contact load AC-1 | 5 A / 250 V |
| Maximum contact load DC-1 | 5 A / 30 V |
| Mechanical endurance (cycles) | ≥ 50 000 000 |
| Number of contacts | 2 CO |
| Operating voltage | See table product references |
| Rated current | 5 A |
| Rated load AC | 1 250 VA |
| Rated load DC | 150 W |
| Recommended minimum contact load | 1 mA / 0.1 V |
| Approvals | UKCA,CE,cURus,EAC |
|---|---|
| Standards | EN 61810 |
