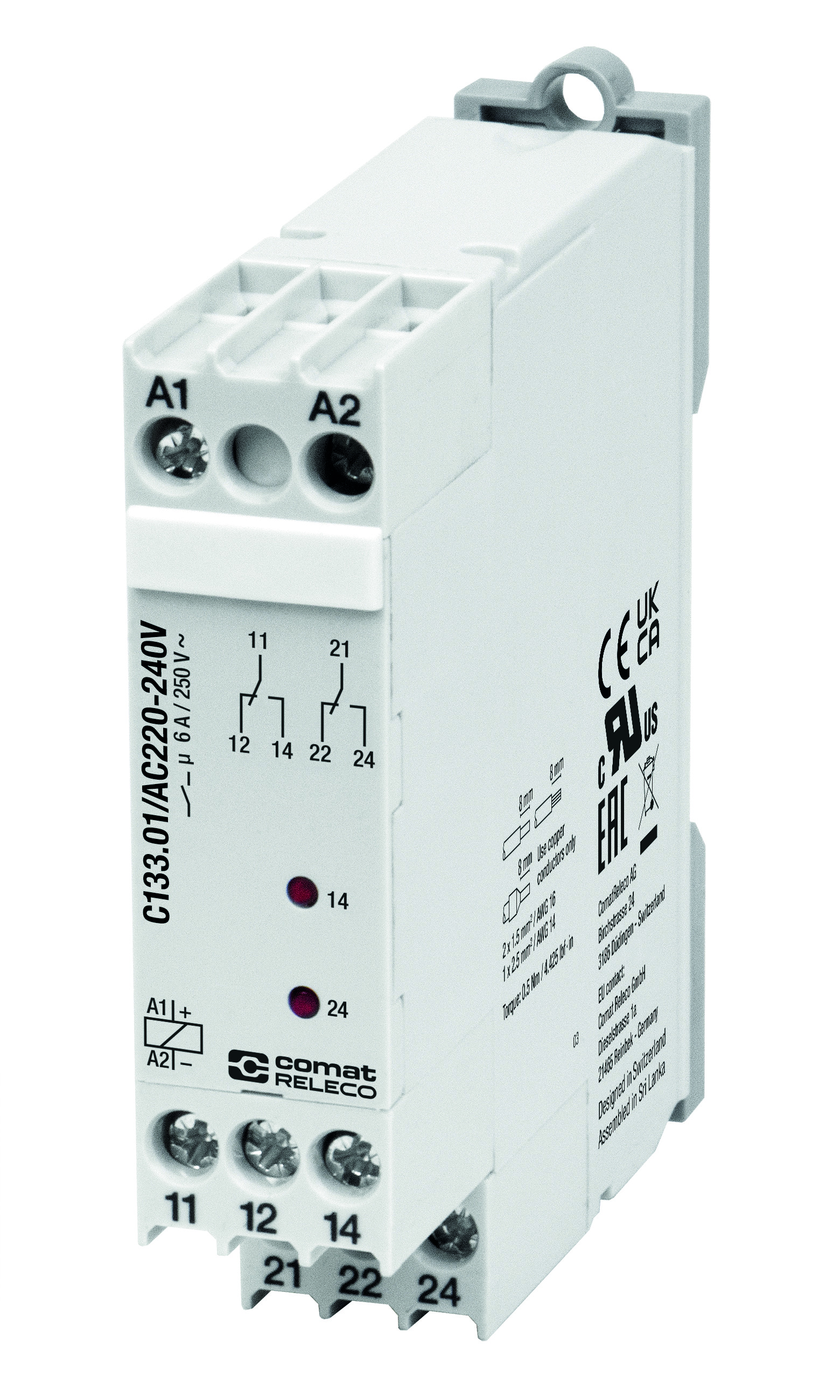

C133.01/AC220-240V
- 2 pole
- Changeover contacts
- Contact material AgNi
- Max 6 A @ 250 V AC / 30 V DC
- Changeover contacts
- Contact material AgNi
- Max 6 A @ 250 V AC / 30 V DC
ELDAS®:
7.63001E+12
| Current type | AC (50 Hz) |
|---|---|
| Nominal voltage | 220 V-240 V |
| Operating voltage range | 0.85 UN … 1.15 UN |
|---|---|
| Pick-up time | 10 ms |
| Pick-up voltage | 0.85 UN |
| Power consumption AC | 1.1 VA |
| Power consumption DC | 1.1 W |
| Release time | 10 ms |
| Release voltage | ≥ 0.1 UN |
| Conductor cross section | solid wire 1 x 4 mm2, 2 x 1.5 mm2, stranded & crimped wire 1 x 2.5 mm2, 2 x 1.5 mm2 |
|---|---|
| Housing material | PA / PC |
| Ingress Protection | IP 20 |
| Mounting | TH35 (EN 60715) |
| Nominal screw torque | 0.5 Nm |
| Operation temperature | -25 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 89 g |
| Contact / coil | 2 kV / 1 min |
|---|---|
| Contact/contact | 4 kV / 1 min |
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 1 kV / 1 min |
| Contact materials | AgNi |
|---|---|
| Electrical endurance at rated load (cycles) | ≥ 300 000 |
| Inrush current | 15 A, 20 ms |
| Maximum contact load AC-1 | 6 A / 250 V |
| Mechanical endurance (cycles) | ≥ 20 000 000 |
| Number of contacts | 2 CO |
| Operating voltage | See table product refeences |
| Rated current | 6 A |
| Rated load AC | 1 500 VA |
| Rated load DC | 300 W |
| Recommended minimum contact load | 100 mA / 12 V |
| Approvals | UKCA,CE,cURus,EAC |
|---|---|
| Standards | EN 61810 |
