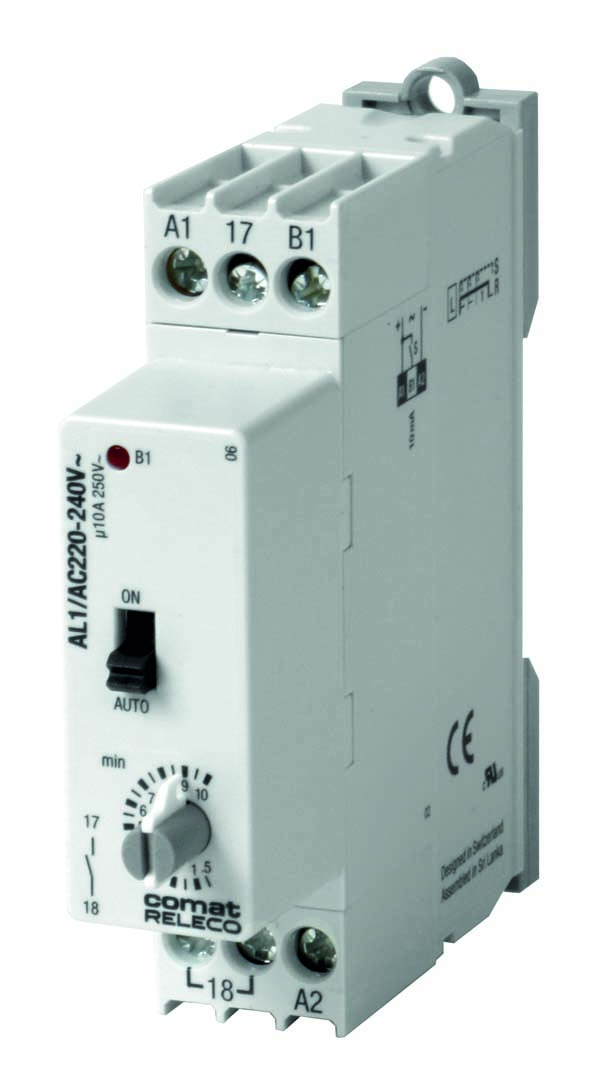

AL1/AC220-240V
- Staircase switch
- NO contact
- Contact material AgNi
- 10 A @ 250 V AC
- For installation in electrical distributor
- Time function: L
- NO contact
- Contact material AgNi
- 10 A @ 250 V AC
- For installation in electrical distributor
- Time function: L
ELDAS®:
533075800
| Current type | AC (50 Hz) |
|---|---|
| Nominal voltage | 220 V-240 V |
| Current consumption on input control B1 AC / DC | < 28 mA / - |
|---|---|
| Current consumption on supply A1-A2 AC / DC | < 45 mA / - |
| Frequency range | 48 … 62 Hz |
| Nominal voltage | 220 … 240 V AC |
| Operating voltage range | 187 ... 265 V AC |
| Power consumption AC / DC | 10.8 VA / - |
| Threshold voltage on input control B1 AC / DC | 154 V / - |
| Conductor cross section control / main circuit | 2.5 mm2, 2 x 1.5 mm2 |
|---|---|
| Housing material | PC |
| Ingress Protection | IP 20 |
| Nominal screw torque control / main circuit | 0.5 Nm |
| Operation temperature | -40 … 40 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 71 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 2 |
| Rated test voltage control / main circuit | 2.5 kV rms / 1 min |
| Rated test voltage open contact | 2.5 kV rms / 1 min |
| Contact materials | AgNi |
|---|---|
| Inrush current | 16 A, 10 ms |
| Mechanical endurance (cycles) | 20 000 000 |
| Minimum load | 10 mA, 12 V |
| Number of contacts | 1 NO |
| Rated current | 10 A |
| Rated load AC-1 | 2500 VA |
| Rated voltage | 250 V |
| Approvals | UKCA,CE,cURus,EAC |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing functions | Pulse shaping (L), retrigger (L) |
|---|---|
| Timing range | 30 s ... 10 min |
